Question

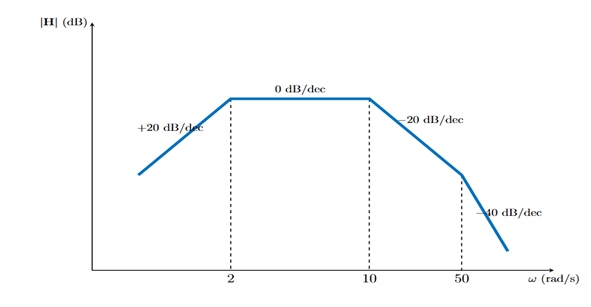

전달 함수의 크기 특성이 다음 그림과 같을 때, H(j\omega)로 알맞은 것은?

Accepted Answer

H(j\omega)=K\,\dfrac{j\omega}{(1+\dfrac{j\omega}{2})(1+\dfrac{j\omega}{10})(1+\dfrac{j\omega}{50})}

Answer

H(j\omega)=K\,\dfrac{j\omega(1+\dfrac{j\omega}{2})}{(1+\dfrac{j\omega}{10})(1+\dfrac{j\omega}{50})}

Answer

H(j\omega)=K\,\dfrac{(1+\dfrac{j\omega}{2})}{j\omega(1+\dfrac{j\omega}{10})(1+\dfrac{j\omega}{50})}

Answer

H(j\omega)=K\,\dfrac{K}{(1+\dfrac{j\omega}{2})(1+\dfrac{j\omega}{10})(1+\dfrac{j\omega}{50})}

Answer

H(j\omega)=K\,\dfrac{(j\omega)^2}{(1+\dfrac{j\omega}{2})(1+\dfrac{j\omega}{10})(1+\dfrac{j\omega}{50})}
