Question

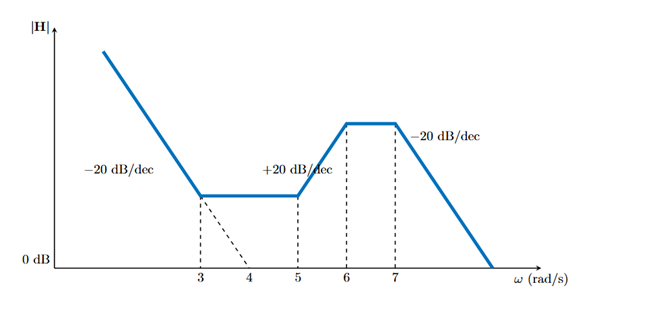

전달 함수의 크기 특성이 다음 그림과 같을 때, H(j\omega)로 알맞은 것은?

Accepted Answer

H(j\omega)=K\,\dfrac{(1+\dfrac{j\omega}{3})(1+\dfrac{j\omega}{5})}{j\omega(1+\dfrac{j\omega}{6})(1+\dfrac{j\omega}{7})}

Answer

H(j\omega)=K\,\dfrac{(1+\dfrac{j\omega}{6})(1+\dfrac{j\omega}{7})}{j\omega(1+\dfrac{j\omega}{3})(1+\dfrac{j\omega}{5})}

Answer

H(j\omega)=K\,\dfrac{(1+\dfrac{j\omega}{3})(1+\dfrac{j\omega}{5})}{(1+\dfrac{j\omega}{6})(1+\dfrac{j\omega}{7})}

Answer

H(j\omega)=K\,\dfrac{(1+\dfrac{j\omega}{3})(1+\dfrac{j\omega}{6})}{j\omega(1+\dfrac{j\omega}{5})(1+\dfrac{j\omega}{7})}
