Question

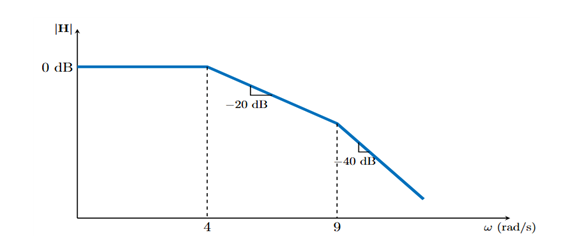

다음 그림에 나타난 보드 선도에 대한 H(j\omega)로 알맞은 것은?

Accepted Answer

H(j\omega)=\dfrac{1}{\left(1+\dfrac{j\omega}{4}\right)\left(1+\dfrac{j\omega}{9}\right)}

Answer

H(j\omega)=\dfrac{1}{\left(1-\dfrac{j\omega}{4}\right)\left(1-\dfrac{j\omega}{9}\right)}

Answer

H(j\omega)=\dfrac{100}{\left(1+\dfrac{j\omega}{4}\right)\left(1+\dfrac{j\omega}{9}\right)}

Answer

H(j\omega)=\dfrac{1}{\left(1+\dfrac{j\omega}{2}\right)\left(1+\dfrac{j\omega}{3}\right)}

Answer

H(j\omega)=\dfrac{100}{\left(1+\dfrac{j\omega}{2}\right)\left(1+\dfrac{j\omega}{3}\right)}
