Question

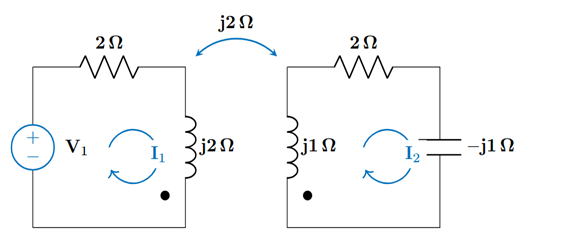

다음 회로의 Mesh Equation으로 옳은 것은?

Accepted Answer

(2 + j2)I_{1} - j2I_{2} = V_{1},\quad \displaystyle -j2I_{1} + 2I_{2} = 0

Answer

(2 - j2)I_{1} + j2I_{2} = V_{1},\quad \displaystyle j2I_{1} + 2I_{2} = 0

Answer

(2 + j2)I_{1} - j2I_{2} = V_{1},\quad \displaystyle j2I_{1} + 2I_{2} = 0

Answer

(2 + j2)I_{1} + j2I_{2} = V_{1},\quad \displaystyle j2I_{1} + 2I_{2} = 0

Answer

(2 + j2)I_{1} + j2I_{2} = V_{1},\quad \displaystyle -j2I_{1} + 2I_{2} = 0
